Description
In stock
Product Details:

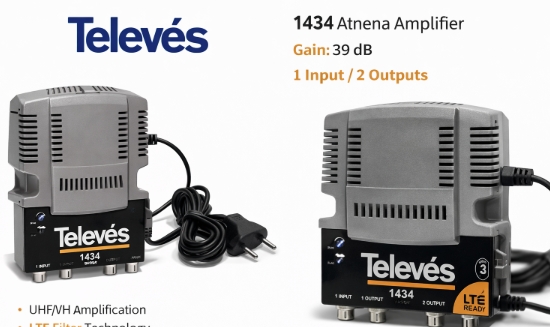

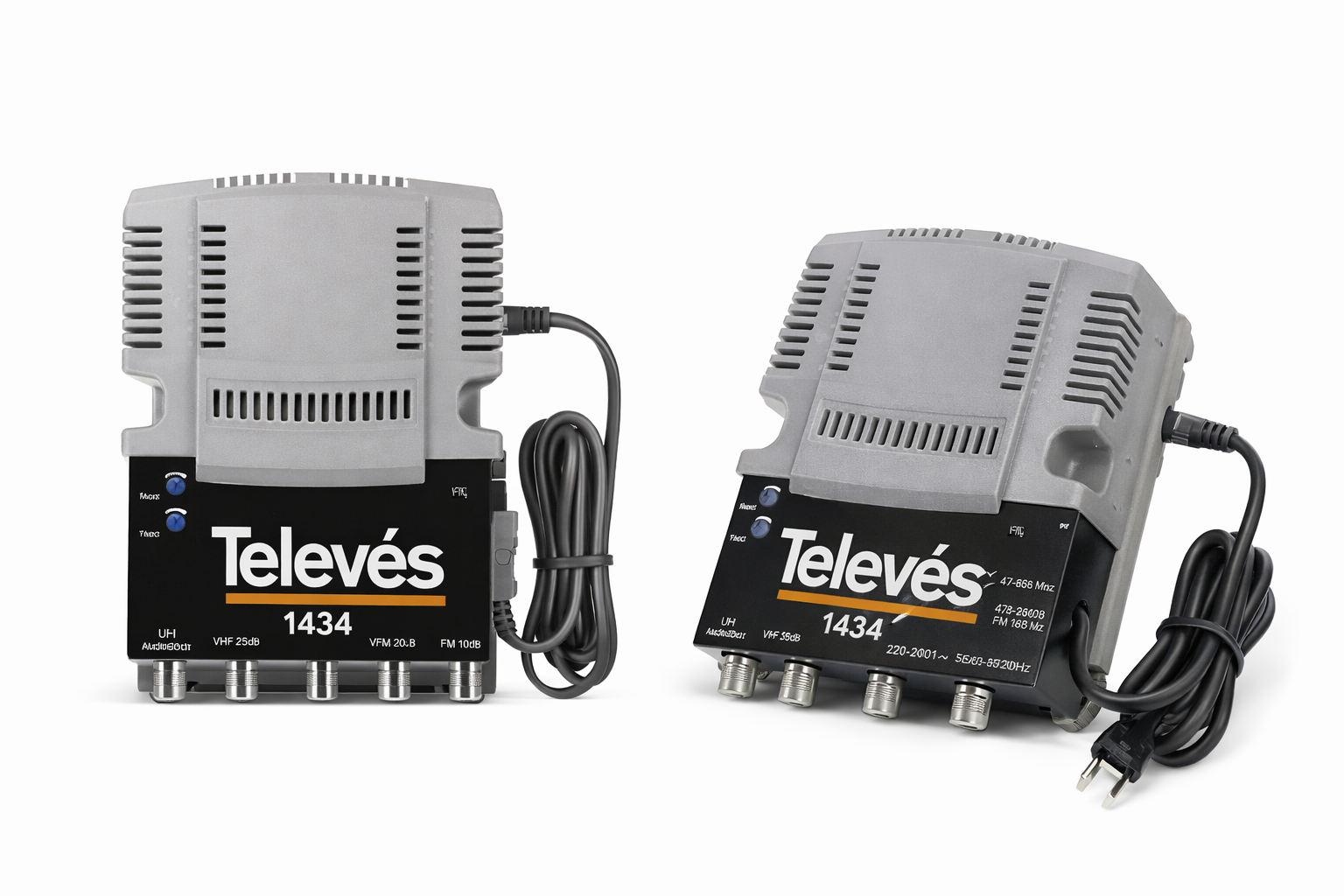

Brand: Televes
Model: 1434
Type: Mast-mounted antenna amplifier
Application: TV signal amplification for UHF/VHF/FM bands
Design: Compact, vented housing with black base
Connectivity: 1 input / 2 outputs (F-type coaxial connectors)
Power: Integrated power cord with 2-pin plug
Technology: LTE filter for interference reduction
Installation: Plug-and-play, wall-mountable
Certification: CE marked, RoHS compliant
Technical Specifications:
Gain: 39 dB total
UHF Gain: 25 dB
VHF Gain: 20 dB
FM Gain: 10 dB
Frequency Range: 47–862 MHz
Output Level: 108 dBμV
Power Supply: 220–240V ~ 50/60Hz
Impedance: 75 Ohms
Noise Figure: < 4 dB
LTE Filter: Integrated
Connectors: F-type (female)
Dimensions: Approx. 130mm x 90mm x 50mm
Weight: ~350g
